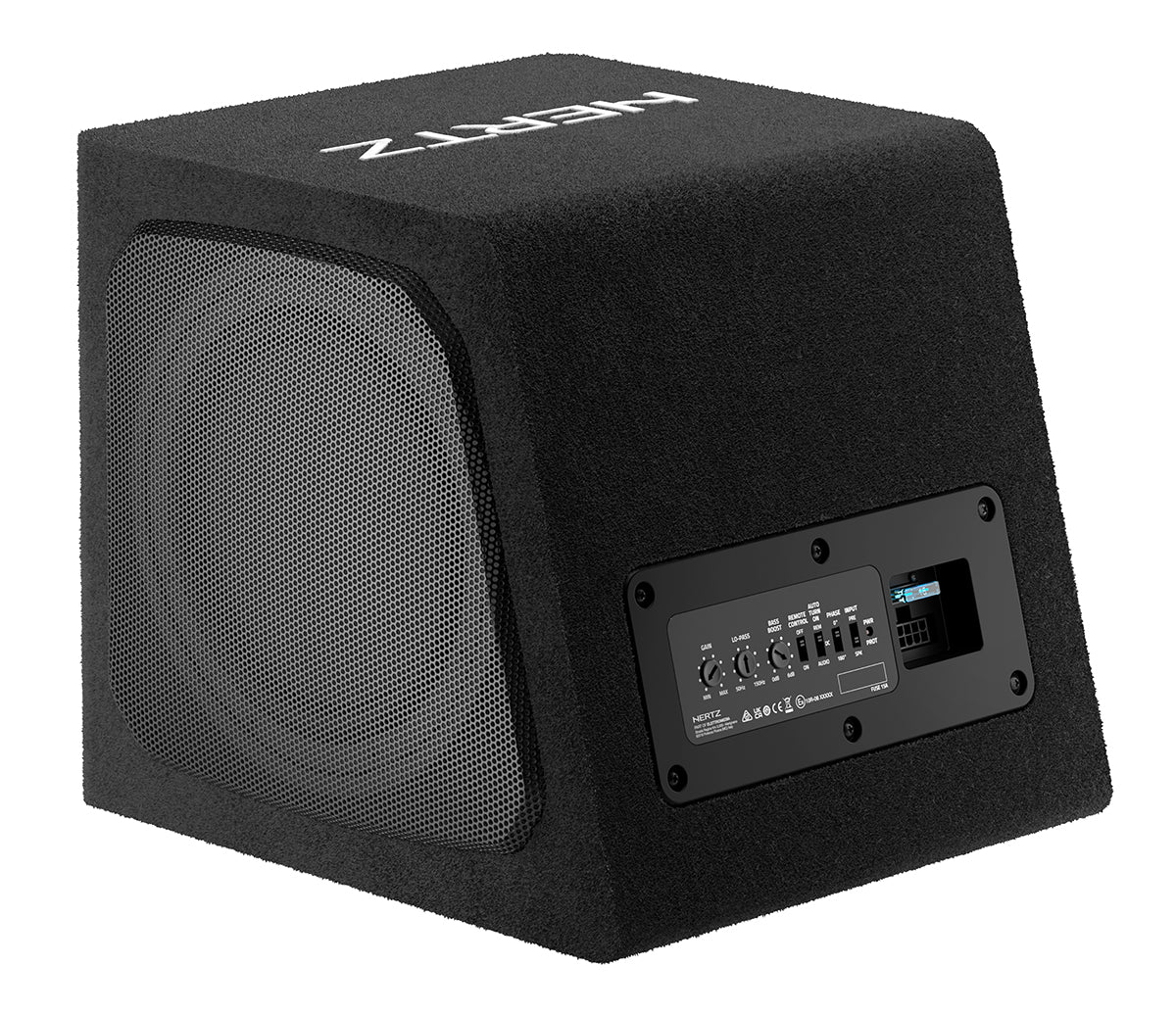

Hertz DBA 201 Active Sealed Subwoofer Enclosure with 8" Subwoofer and Dual Passive Radiators
Hertz DBA 201 Active Sealed Subwoofer Enclosure with 8" Subwoofer and Dual Passive Radiators
High performance in a compact stylish design
The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.
Auto turn-on and standby mode
The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
Features:
- High performance in a compact stylish design
- 440-watt peak Class D amplifier
- Compatible with every car audio system
- Plug & Play connection
- Extra full set of controls to fine-tune the in-car performance
- Auto turn-on and standby mode
- Provided remote-level control
Specs
Technical Specs
Size mm (in.) 200 (8)
Power Handling - Continuous W 220
Power Handling - Peak W 440
Impedance Ohm 0.4
Design Active subwoofer box with double passive radiators
Voice Coil Ø 38.6 (1.52) mm (in.)
Frequency Response Hz 32 ÷ 400
Magnet size D x d x h mm (in.) 115 x 47 x 25 (4.5 x 1.8 x 0.98)
Weight of one component kg (lb.) 6.7 (10.54)
Magnet High Density Flux Ferrite
Cone Pressed paper
Voice Coil Type Copper
Amplifier Stage
Distortion - THD @ 100 Hz % 0.15
Bandwidth Hz 15 - 150
S/N ratio dBA 100
Output power (RMS) @ 14,4 VDC, 1% THD W 220
Power Supply
Operating voltage VDC (Fuse) 6.5 ÷ 18 (15A)
Start - Stop voltage VDC 6
Idling current A (Power OFF) 260 m (1 m)
Consumption @ 14,4 VDC Max musical power A 8.5
Remote IN Turn on VDC (Current) 4 (1 mA)
PRE input signal Turn ON VRMS 10 mV
SPK input DC Turn ON VDC 2
Signals Inputs / Filter
PRE input signal VRMS (impedance) 0.2 ÷ 5 (10kΩ)
SPK input signal VRMS (impedance) 1.2 ÷ 30 (6Ω)
LO-PASS Filter @ 24 dB Oct adjustable Hz 50 ÷ 150
Subsonic Filter @ 24 dB Oct Fixed Hz 15
Phase switch 0 / 180°
Bass Boost @45 Hz dB 0 ÷ 6
Sub remote volume control dB 0 ÷ -15 (HRC 01 included)
Physical Specs
Height: 10.39"
Width: 11.46"
Depth: 12.42"
