Kenwood Excelon XM160-2-98 Compact 2 Channel Amplifier for 1998-2013 Harley Davidson Motorcycles

No Radio Flash Required
This amplifier is tuned for the best performance with a stock Harley Davidson® or aftermarket radio.

Input Sensitivity Setting
The input sensitivity adjustment exists to be able to properly level match an aftermarket receiver’s output if the OEM Harley Davidson® radio has been replaced (otherwise, we would have just removed and pre-set it!).

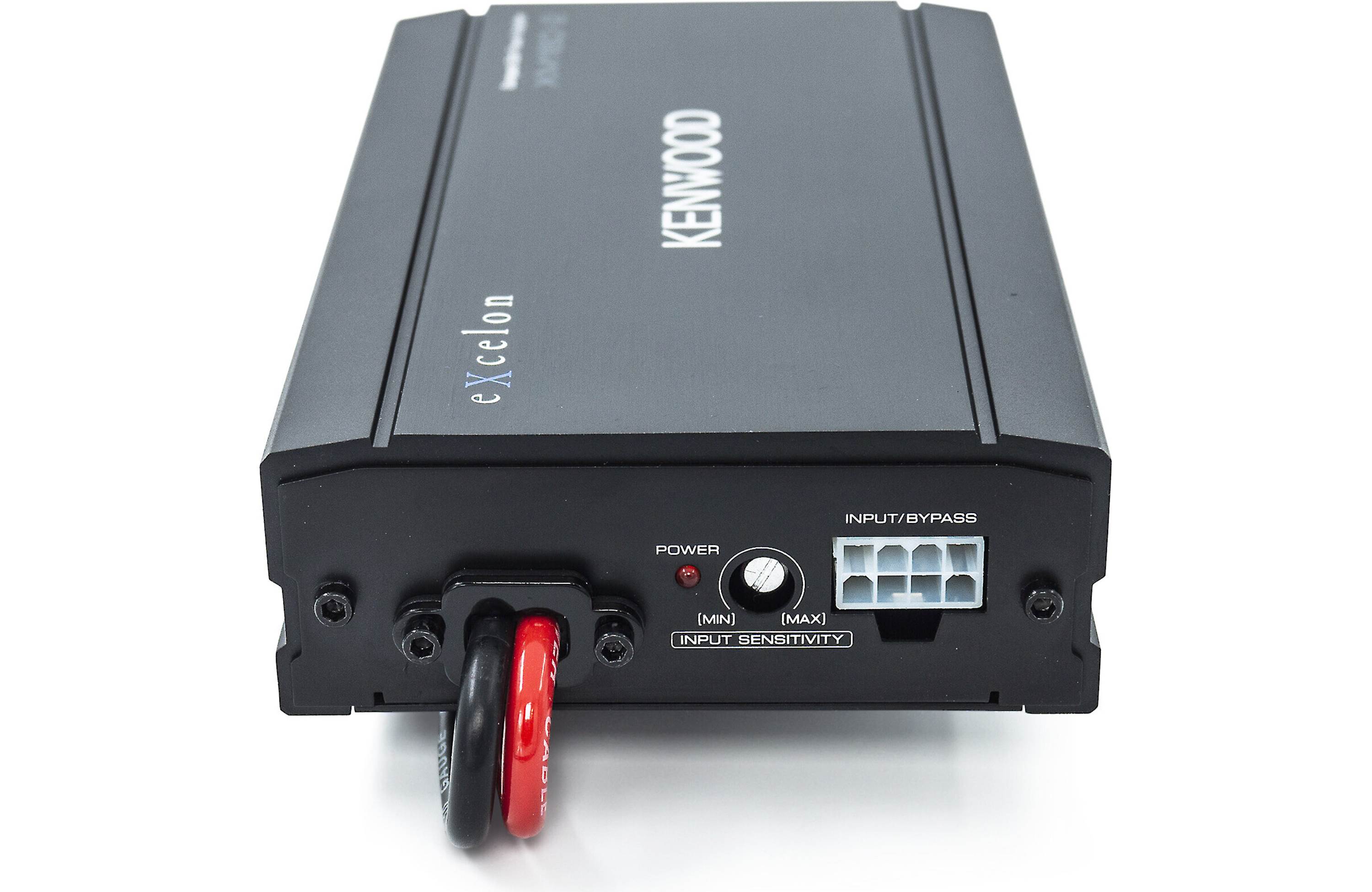

With an OEM Harley Davidson® radio, the input sensitivity should be set at just past the halfway point for optimal sound as shown in the picture above.

**Note** With this setting, the OEM Harley Davidson® radio can be turned up to 3 “clicks” from its max volume before the radio begins to distort.

Bypass Port For System Expansion
Easily add additional amplifiers by connecting to the input/bypass harness.

Built-in Voltage Monitoring Circuit
Automatically turns off the amplifier when the battery voltage drops below 10.5V

BIKE FITMENT
2006-2013 FLHX Street Glide
1998-2011 FLHTC Electra Glide Classic
1998-2013 FLHTCU Ultra Classic
2009-2013 FLHTCUG Tri Glide Ultra
1998-2011 FLHT Electra Glide Standard Fairing (with radio installed)
1998-2013 FLTR Road Glide*
2011-2013 Road Glide Ultra*
This list is not conclusive. Products may fit additional bikes.
*CA-PLT98RG Mounting Plate Required

Specs

• Class D 2-Channel Power Amplifier
• 80W x 2 @ 2 ohms (RMS)
• No Radio Flash Required
• Bypass Port For System Expansion
• Plug & Play Power, Speaker, & Input Wiring
• Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver
• Input Sensitivity Adjustment
• High Efficiency Design Will Not Overload HD Electrical Systems
• 2-Year Warranty
